Automatic self-adjusting suspension
deck plates
olimac-dragogt01-en
TOTAL HARVESTING WITHOUT LOSSES OF KERNELS AND EARS
Olimac-Drago-GT-suspension-deck-plates

Suspension deck plates: deck plates of the DragoGT corn head are equipped with a special suspension device able to absorb the impact of ears on the same plates: ears separate gentler, avoiding losing kernels and ears do not bounce out.
Automatic self-adjusting deck plates: deck plates open automatically and simultaneously according to the different size of the stalks. This automatism works on each row independently. Operator does not need to make any adjustment. Total harvesting, without losses.

Longer stalk rollers
olimac-dragogt02
PERFECTLY PRESSED STALK
Olimac-Drago-GT-longer-stalk-rollers

Stalk rollers are longer compared to normal corn heads: a lower peripheral rotation speed allows for a gentler separation of the ear from the plant. Stalk perfectly pressed, total harvesting, without losses.

Double Stalk Chopper Scissor Effect
olimac-dragogt01-en
MUCH FINER CHOPPING
Olimac-Drago-GT-double-stalk-chopper

Unique in the world, DragoGT is equipped with Double Stalk Chopper Scissor Effect: on each row there are four blades working, two on one side, two on the opposite, but with inverted rotation, like a scissors. Stalks are doubly shuttered and result shorter. Chopping operation is much finer compared to the one of all the other stalk choppers. Product on the ground decomposes much rapidly.
Double Stalk Chopper has low power consumption, equal to a single stalk chopper.

Olimac-Drago-GT-trinciastocchi-singolo

Single Stalk Chopper. DragoGT is also available in the single stalk chopper version.

Testata-mais-Drago-GT-10-file-rows-Corn-head-maispfluecker-10-reihen-cabezal-de-maíz-10-hileras
WATCH THE COMPARISON AMONG DRAGO GT AND
THE OTHER CORN HEADS ACTUALLY ON THE MARKET
Hyper-dimensioned auger
olimac-dragogt06-en
HIGHER FORWARD SPEED IN DOWN CORN, NO OBSTRUCTIONS
Drago-GT-all-down-corn-harvested

DragoGT is equipped with a new hyper-dimensioned auger of Ø 500 mm (the biggest in the sector) allowing higher forward speed in down and dry corn: so to avoid all obstructions and loss of kernels. Your combine-harvester will work at the highest performance level. Lateral augers and low profile construction allow for total harvesting even when ears are very low-lying or hanging.

Four clutches for each row
olimac-dragogt06-en
HIGHER PERFORMANCE AND SAFETY
Drago-GT-unique-corn-head-with-four-clutches

Normal corn heads have got only one clutch that intervenes in different movements. DragoGT, on the contrary, has got four clutches for each row. These four clutches have different calibrations, each one perfectly adequate for a specific movement: higher performance and safety.

Spiral bevel gear pairs
olimac-dragogt06-en
MORE POWER, LESS NOISE
Olimac-Drago-GT-unique-with-automotive-gears

Unique in the world in this sector, DragoGT is equipped with spiral bevel gear pairs of automotive origin, allowing for a total power transmission and guaranteeing a noiseless performance compared to traditional gears used by all other brands of corn heads.

A worldwide unique technology
MORE EFFICIENT IN EXTREME WORKING CONDITIONS
Olimac-Drago-GT-perfetta-raccolta-mais-allettato-Spannocchiatore-attacchi-registrabili-peso-ridotto-massima-robustezza-perfect-down-corn-harvesting-adjustable-connections-reduced-weight-maximum-robustness-perfekte-ernte-von-lagermais-maispfluecker-einstellbare-aufhaengung-geringes-gewicht-maximale-robustheit-perfecta-recolección-del-maíz-encorvado

Working angle of 18°
It allows the best harvesting of down corn, avoiding ears from bouncing out of the machine.

Adjustable connections
DragoGT can maintain its working position of 18° with any type and brand of combine-harvester, the most performing for a complete harvesting without losses. Adjustable connections allows maintaining this working position regardless the height of the wheels of the combine-harvester.

Gear box in light alloy
Olimac, thanks to its exclusive technology, has developed gear boxes in light alloy – this way the weight of the machine is reduced while its robustness is increased. All this by using cast iron when necessary. An extraordinary result only DragoGT can offer.

Three types of transmissions
SUPER-PERFORMING, ZERO MAINTENANCE
Testata-mais-Drago-GT-trasmissione-performante-zero-manutenzione-interna-bagno-d’olio-esterna-ingranaggi-cilindrici-performing-transmission-zero-maintenance-oil-bathed-internal-transmission-external-transmission-with-cylindrical-gears maispfluecker-hochleistungsantrieb-null-wartung-interner-antrieb-mit-oelbadschmierung-externer-antrieb-mit-zylinderfoermigen-verzahnungen-transmisión-performante-cero-mantenimiento

Internal transmission with cylindrical gears for high powers
DragoGT 6-8-10-12-16-18-24 fixed rows
DragoGT 9-10-12-16-18 foldable rows
High-performing transmission.
Zero maintenance, re-lubrication not required. Total protection from impurities and foreign objects.

Oil-bathed internal transmission
DragoGT 6-8 foldable rows
High-performing transmission.
Zero maintenance, re-lubrication not required. Total protection from impurities and foreign objects.

External transmission with cylindrical gears
DragoGT 6-8 foldable rows
High-performing transmission.
Zero maintenance, re-lubrication not required. Total protection from impurities and foreign objects. Ideal for hill areas.

Three-time long lasting
CORN HEAD LASTS MORE, EXCELLENT AESTHETICS
Olimac-verniciatura-dura-tre-volte-di-più-three-times-long-lasting-painting-dreimal-langer-haltbare-lackierung-barnizado-dura-tres-veces-más

Olimac plant, that is totally automatic and robotic, ensures a lifetime of the painting which is three times higher than the average of the sector: excellent aesthetics and longer life of the corn head are guaranteed.

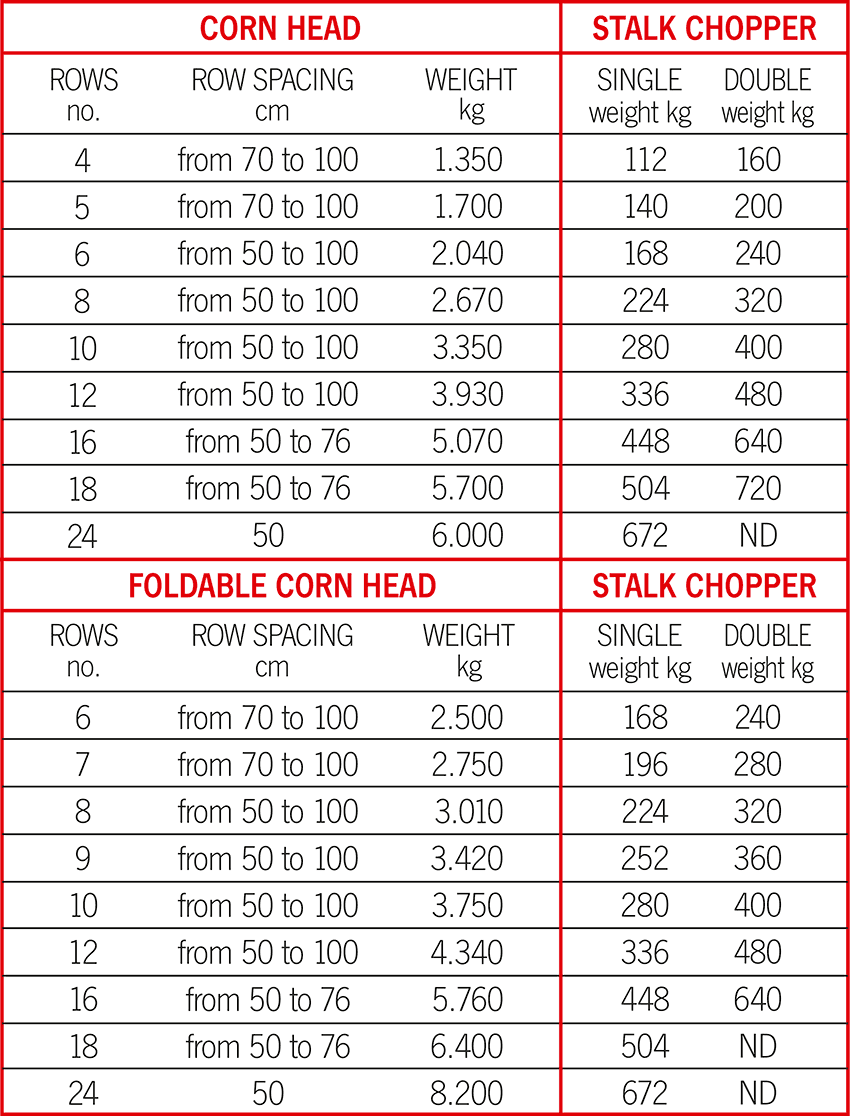

DragoGT: 4 to 24 rows, fixed or foldable
CUSTOMIZED ACCORDING TO YOUR NEEDS

Customization – Olimac has a department dedicated to the customization of DragoGT corn heads.
A team of technicians develops and fine-tunes
special configurations to satisfy requests from each customer.
’Total Steel’ Version – Upon request, you can have your DragoGT with stainless steel bonnet.
Foldable from the driving seat – DragoGT can be foldable right from the driving seat. Reduced encumbrance together with total visibility make it easier to drive on the road.
Support and original spare parts – A worldwide network of Olimac Autorized Centers, assures competent support and rapid response to solve any problem. The use of original Olimac spare parts will guarantee safe operations and long life for your DragoGT corn head.

Olimac-Drago-GT-24-rows
DragoGT accessories
Olimac-Drago-GT-kit-girasole-griglia-protezione-rotore-taglio-kit-sunflower-protection-grid-kit-sunflower-cutting-rotor-bausatz-sonnenblumen-schutzgitter-bausatz-sonnenblume-schneiderotor-rejilla-protección-rotor-corte

– Sunflower kit
Lateral and rear fall protection grid
Sunflower stalk cutting rotor

Drago-GT-spannocchiatore-gomme-ferma-pannocchie-kit-schiacciastocchi-corn-head-ear-stopping-rubber-stalk-pressing-kit-maispfluecker-gummihalterungen-fuer-maiskolben-bausatz-stoppelquetscher-cabezal-gomas-para-mazorcas-aplasta-mata

– Ear stopping rubber
Ideal on hill areas or different height
– Stalk pressing kit
Combine-harvester tyre protection

Olimac-Drago-GT-autopilota-livellamento-automatico-della-barra-barra-luci-autopilot-automatic-levelling-bar-light-bar-automatische-hoehenjustierung-des-schneidevorsatzes-beleuchtungs-aufsatz-autopiloto-nivelación-automática-de la-barra-luces

– Auto-pilot
– Sensors kit
Automatic leveling of the bar
– Light bar
For on-road transport
